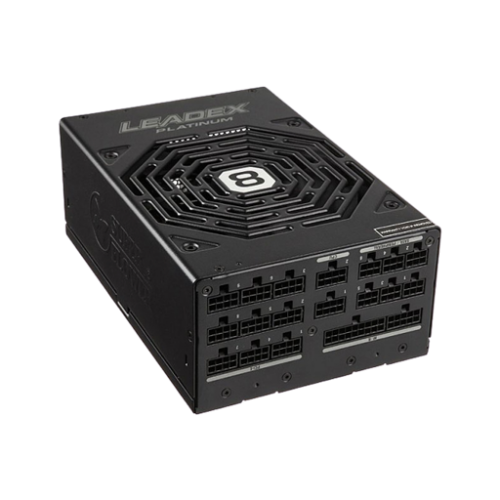

Model No.

SF-2000F14HP

Wattage

2000W

80+ Efficiency

92% 94% 90% Efficiency At 20% 50% 100% Rated Load

Intel Power Design Guide

V2.92

AC Input | Frequency

Single Voltage 230V | 50 / 60HZ

Fan Size

140mm Two-Ball Bearing Fan

Dimension

220mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OPP / SCP / UVP / OTP / LVP / NLO / SIP

Safety

TÜV / CB / CE / EAC / RoHS / KCC /CQC

Temprature

Passed 50℃ Hot Testing

Cable Spec

20+4Pin

Detachable Cables

one cable(600mm)

(4+4Pin) CPU

two cables(750mm)

PCI-E 6+2Pin

four cables(750mm)

SLI (2 x PCI 6+2Pin)

five cables(750+150mm)

4SATA

four cables(550+100+100+100mm)

3Molex

two cables(550+100+100mm)

Molex to FDD Adapter

two cables(100mm)
