Technical Spec :

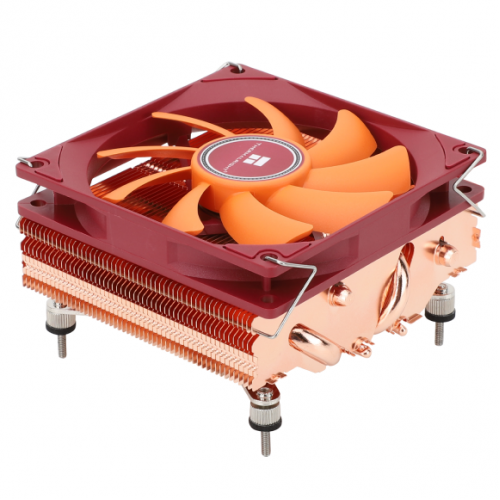

Heatsink Specifications:
Dimension: L94.5 mm x W95 mm x H32 mm
Weight(With Fan): 520g
Heat pipes: 6mm heatpipe x 4 units
Fin: T = 0.3 mm；Gap=1.6 mm
Copper Base：C1100 Pure Copper nickel plated

TL-9015R FAN Spec：
Dimension: L92 mm x W92 mm x H15 mm
Rated Speed: 2700 RPM±10% (MAX)
Noise Level: 22.4 dBA
Air Flow: 42.58 CFM (MAX)
Air Pressure: 1.33mm H2O (MAX)
Ampere: 0.18 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : HYDRAULIC Bearing
